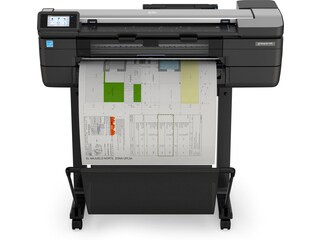

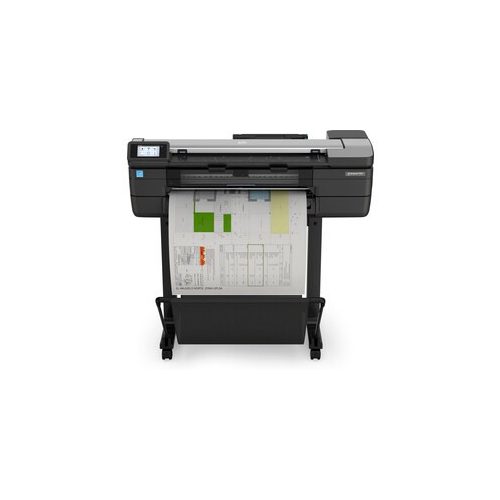

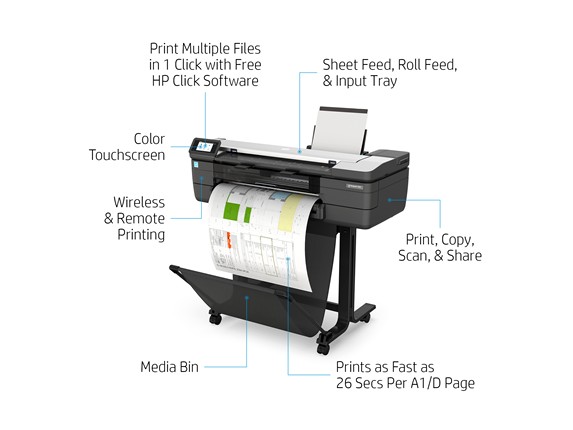

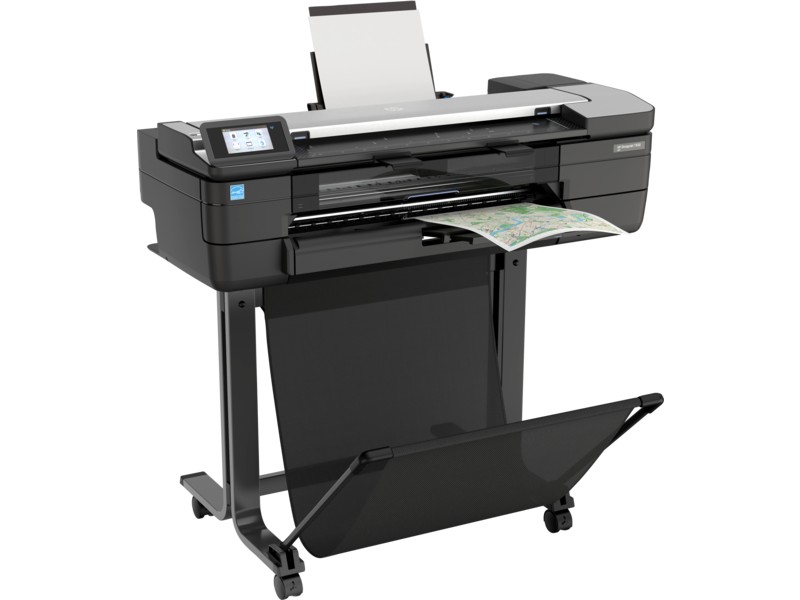

HP DesignJet T830 24-in Multifunction Printer (F9A28D)

Model size:

36 in

Functions:

Print, copy, scan

Speed specifications

Print time line drawing (economode, D plain paper):

25 sec/page

Print speed line drawing (economode, D plain paper):

82 D prints per hour

Linear scan speed:

Up to 1.5 in/sec (color, 200 dpi); up to 4.5 in/sec (grayscale, 200 dpi)

Memory, standard:

• 1 GB

Hard disk:

• None

Technical specifications

Print quality (best)

Color: Up to 2400 x 1200 optimized dpi

Print technology:

HP Thermal Inkjet

Number of print cartridges:

4 (cyan, magenta, yellow, black)

Compatible ink types:

• Dye-based (C, M, Y)
• pigment-based (K)

Non-printable area (cut-sheet):

0.2 x 0.2 x 0.2 x 0.2 in

Guaranteed minimum line width:

0.0028 in (ISO/IEC 13660:2001(E))

Line accuracy:

+/- 0.1%

Maximum optical density (black):

8 L* min/2.10 D

Scan resolution, optical:

Up to 600 dpi

Enhanced scanning resolution:

600 dpi

Scanner type:

Sheetfed, CIS (Contact Image Sensor)

Scan size (flatbed), maximum:

36 x 109 in

Scan size flatbed (minimum):

5 x 5 in

Copy reduce / enlarge settings:

25 to 400%

Copies, maximum:

Up to 99 copies

Bit depth:

24-bit/8-bit

Paper handling

Finished output handling:

• Sheet feed
• roll feed
• input tray
• media bin
• automatic cutter

Media types:

Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)

Media sizes standard (sheets, rolls):

• 8.3 to 36-in wide sheets
• 11 to 36-in rolls

Media sizes, custom:

• Input tray: 8.3 x 11 to 13 x 19 in
• manual feed: 13 x 19 to 36 x 74.7 in
• roll: 11 to 36 in

Roll external diameter:

3.9 in

Media thickness:

Up to 11.8 mil

Connectivity

HP ePrint capability:

Yes

Printing path:

Printer driver, Apple AirPrint, print from USB pen drive

Connectivity, standard:

• Gigabit Ethernet (1000Base-T)
• Wi-Fi
• Hi-Speed USB 2.0 certified connector

Print languages:

HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI, URF

Power and operating requirements

Power consumption:

35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)

Operating temperature range

41 to 104ºF
(5 to 40ºC )

Operating humidity range:

20 to 80% RH

Dimensions and weight

Minimum dimensions (W x D x H):

55.2 x 24.8 x 45.5 in

Weight:

137.8 lb

What's included

Warranty:

Two -year limited hardware warranty

What's in the box:

HP DesignJet T830 MFP; printhead; ink cartridges; printer stand; spindle; quick reference guide; setup poster; startup software; power cord; refeed preventers

Software included:

• HP Utility for Mac and Windows
